(1) Working principle:

This machine has a high degree of automation and does not require skilled workers. Put the cloth into the crimping machine and pull the start lever to work on its own. It can operate the entire roll of curtain fabric. The machine will automatically stop after the fabric is finished.

(2) Purpose: This machine is suitable for sewing double side edges, bottom edges and tapes of various types of curtain fabrics.

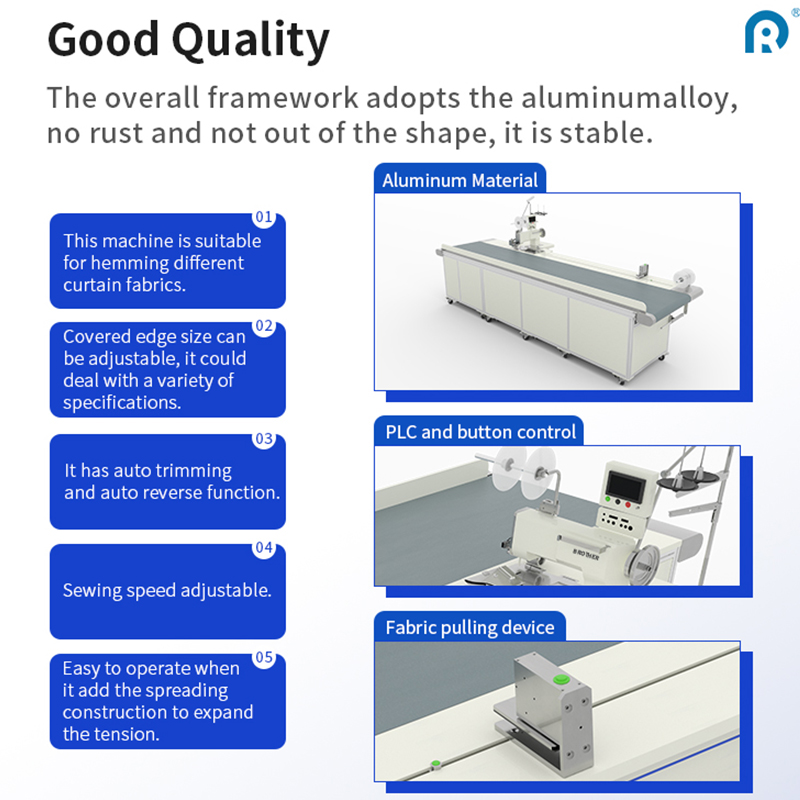

(3) Basic structure: machine head, rear pulley device, working platform and belt-type auxiliary feeding device, ironing device, main body bracket

(4) Parameters

Made of high-quality steel plate, Japanese Brother machine head

Power: 1.2KW

Size: 3850×1500×1300mm

Power supply: 220V

Weight: 330KG

(5) Operation and use:

Make the hem:

1. Turn on the computer

2. Install the mold on the machine, align the mold in front of the presser foot, and adjust the outlet to about 0.1-0.2.

3. Fold the cloth in half to 2 cm, and then fold it in half to 8 cm.

4. After folding it in half, step back with your heel and put the cloth into the device.

5. Press the pedal forward lightly to put the cloth into the mold. According to the fabric requirements, the fabric should be pulled down tighter.

6. Press the pedal forward and the machine will run.

Make the sides:

1. Turn on the computer

2. Install the mold on the machine, align the mold in front of the presser foot, and adjust the outlet to about 0.1-0.2.

3. Fold the cloth in half to 2 cm, and then fold it in half to 3 cm.

4. After folding it in half, step back with your heel and put the cloth into the device.

5. Press the pedal forward lightly and put the cloth into the mold.

6. Press the pedal forward and the machine will run.
